OBD 4G GPS Tracker HS-4000W
2018-10-23 20:12:26 From:http://www.huashengtelematics.com/ Author:yaozhida
Desctiption:

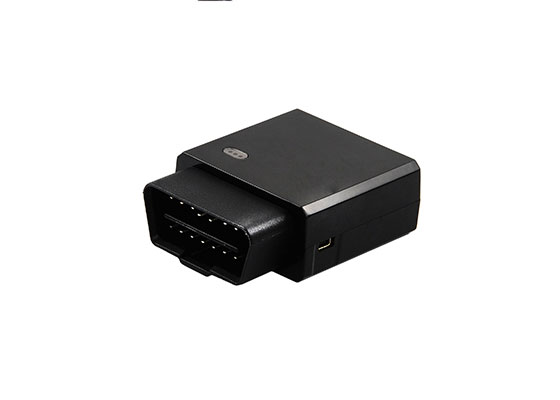

HS-4000W is a plug & play 2G + 3G + 4G OBD gps tracker that can install in cars & trucks, it reads data from car ECU, including mileage, fuel consumption, fuel level, engine temperature, DTC code, VIN & others. It can record driving behavior data & send to server for analysis. It also provides WiFi Hotspot for internet connection. It is widely used in fleet management & insurance telematics.
Key features:
● OBDII and CANBUS protocol, DC 12V and 24V;
● 2G GSM/GPRS quad-band, 3G UMTS quad-band;
● 4G LTE network (covering all 4G bands world-wide);
● Support WiFi Hotspot, up to 8 users;
● Support A-GPS (make GPS locating much faster);
● Plug and play, Small size, no installation cost;
● Collect fuel consumption data, meter speed (RPM);
● Very accurate mileage data (accuracy>99%);
● Collect DTC (Diagnostic Trouble Code) for remote diagnostic;
● Collect VIN, engine temperature;
● Internal GSM and GPS antennas;
● TCP and UDP protocol;
● Update firmware over the air;
● Illegal start-up, impact and rollover alarm;
● Detect harsh acceleration, braking, turn and high revolution;
● Driving behavior recording and analysis;
● Store break points data in non-volatile memory;
● Track on google map and other maps;
● Android, iOS APP & telematics software free for ever;
● Auto sleep mode to save automotive power;
● Wide working temperature range: -30 to +80℃.
Specifications:
GPS Specifications | |
GPS Module | U-blox |
Channel | 50 pararrel channels |
Position Accuracy | ≤ 2.5m |
Speed Accuracy | ≤0.1m/s |
Sensitivity | Tracking: -162dBm |
Acquisition Time | Cold Start: 29s Warm Start: 29s Hot Start: 1s |
Communication | Quectel EC25 4G module Including 2G, 3G quad-bands; 4G LTE network: EC25-AU: B1/B2/B3/B4/B5/B7/B8/B28 EC25-A: B2/B4/B12 EC25-E: B1/B3/B5/B7/B8/B20 |
MCU | |
Interface | |
Mini USB Port | 1 |
GPS Antenna | Internal |
GSM Antenna | Internal |
OBDII Connector | SAE J1962 |
Air Interface Protocol | |
Transmit Protocol | TCP, UDP, SMS |
Vehicle Protocol | |
ISO 15765-4 (CAN) ISO 14230-4 (Keyword Protocol 2000） ISO 9141-2 (Asian, European, Chrysler vehicles) SAE J1850 VPW (GM vehicles) SAE J1850 PWM (Ford vehicles)
ISO 15765 ISO 11898 (raw CAN)
SAE J1939 OBD protocol
Non-legislated OBD protocols (can be added according to customer's needs): Single Wire CAN (SW-CAN) – GM proprietary network Medium Speed CAN (MS-CAN) – Ford proprietary network | |
General Specifications | |
Sensor | Accelerator sensor and shock sensor |
Case Material | ABS |
Operation Voltage | DC 12 or 24V |
Active current | 70mA |
Operation Temperature | -30 to +80℃ |
Operating Humidity | 5% to 95%, non-condensing |
Dimension | 62*48*20mm |
Weight | 60g |
